10 Luxury Modern Bathroom Ideas

Contemporary luxury bathroom design blends minimalist architectural discipline with sensory, resort-grade wellness features. Moving far beyond utilitarian washrooms, modern master ensuites function as personal hydrotherapy sanctuaries characterized by zero-threshold floor planes, monolithic natural stone, concealed plumbing systems, and circadian-tuned ambient lighting.

The key to elevated modern bathroom design lies in seamless materiality and spatial continuity. Integrating curbless wet rooms, floating double vanities, bookmatched marble feature walls, fluted glass partitions, and sculptural soaking tubs creates an open, restorative environment.

Whether planning an extensive master ensuite renovation or building a ground-up luxury residence, these ten curated concepts deliver structural blueprints, material specifications, and production-ready visual prompts.

Core Architectural Principles & Materials

• Monolithic Stone Surfaces: Large-format porcelain slabs ($48times96$ inches), honed Roman travertine, Calacatta Viola marble, Brazilian Cristallo quartzite, flamed basalt.

• Warm Architectural Timbers: Marine-grade natural teak, rift-sawn white oak, smoked walnut veneer, thermo-treated ash.

• Refined Hardware Finishes: Brushed champagne brass, knurled matte gunmetal, blackened bronze, unlacquered raw brass.

• Concealed Mechanics & Waterproofing: Continuous linear trench drains with tile-insert grates, in-wall steel carrier toilet systems (e.g., Geberit), and sheet-applied bonded waterproofing membranes (e.g., Schluter-KERDI).

1. The Curbless Wet Room with Monolithic Stone Soaking Tub

Architectural Concept & Structural Design

An expansive, glass-minimalist wet room where the walk-in dual shower zone and a sculpted freestanding stone soaking tub share a continuous, zero-threshold waterproofed floor plane.

Structural Execution Guide

• Pitch the wet room floor uniformly at a 1/4-inch per foot slope toward a wall-recessed stainless steel linear trench drain.

• Clad walls and floor in matching large-format $24times48$-inch honed gray limestone or porcelain slabs with 1/16-inch color-matched grout joints.

• Center an oval, solid-surface matte-white composite or carved limestone soaking tub directly along the primary entry sightline.

• Install dual ceiling-flush $20times20$-inch rain showerheads paired with a floor-mounted brushed champagne brass tub filler.

• Separate wet and dry zones with a single stationary panel of 1/2-inch ultra-clear, low-iron tempered architectural glass.

Pro Design Tip

Embed radiant in-floor heating cables directly through the wet room floor and under the tub footprint so the stone surface dries rapidly while staying warm underfoot.

2. Fluted White Oak Floating Double Vanity with Integrated Ramp Sinks

Architectural Concept & Structural Design

A wall-hung, 84-inch double vanity crafted from vertical fluted rift-sawn white oak, topped with a continuous Calacatta Gold marble slab with integrated sloping ramp basins.

Structural Execution Guide

• Anchor heavy-duty structural steel cantilever brackets to 2×6 wall framing before mounting the vanity 12 inches above the finished floor.

• Fabricate drawer fronts with 3/4-inch vertical fluted rift-sawn white oak finished with a moisture-cured matte polyurethane sealant.

• Top with a 3-inch mitered Calacatta Gold marble countertop featuring precision-sloped ramp sinks that conceal drain holes beneath removable stone inserts.

• Mount minimalist wall-mounted gooseneck spouts in brushed champagne brass directly through the stone slab backsplash at 42 inches above the floor.

• Recess a continuous warm-white (2700K) LED channel beneath the floating vanity base to wash the floor in soft ambient light.

Pro Design Tip

Equip internal pull-out drawers with integrated electrical grommets and heat-safe silicone sleeves to keep hair styling tools plugged in and off the counter.

3. Minimalist Waterproof Microcement & Tadelakt Plaster Ensuite

Architectural Concept & Structural Design

A grout-free, seamless Mediterranean-minimalist bathroom where walls, ceiling, shower enclosures, and built-in floating benches are finished in smooth, waterproof warm-sand microcement.

Structural Execution Guide

• Apply a multi-layer 3mm microcement or traditional Moroccan Tadelakt plaster system over cement backerboard across all walls and shower surfaces.

• Seal the microcement with a two-part, non-yellowing matte polyurethane sealer for complete moisture impermeability.

• Form a cantilevered floating shower bench and shampoo niche directly into the framing, coating both continuously in microcement.

• Contrast the warm, textured plaster with knurled matte-black plumbing trims and blackened-steel mirror frames.

• Lay large-format charcoal basalt floor tiles with minimal grout lines to ground the neutral walls.

Pro Design Tip

Round all outside edges of built-in benches and shower niches to a 1/4-inch radius; curved plaster profiles resist chipping far better than sharp 90-degree corners.

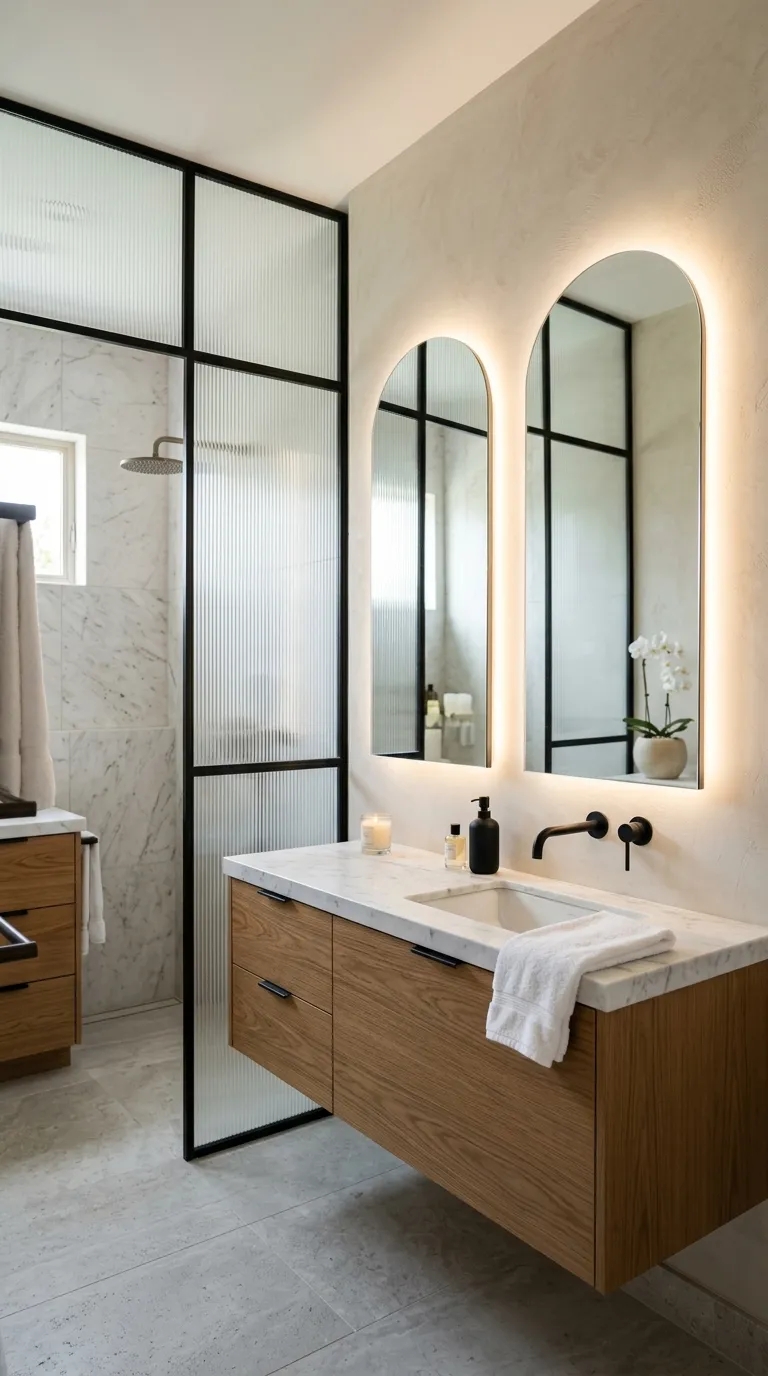

4. Backlit Architectural Arched Mirror Wall & Fluted Glass Partitions

Architectural Concept & Structural Design

A luminous vanity suite featuring dual oversized, frameless arched mirrors with integrated rear halo lighting, set against reeded fluted-glass water-closet enclosures.

Architectural Execution Guide

• Clad the primary vanity wall in smooth Venetian plaster or vertical ceramic finger tiles.

• Mount two custom $30times50$-inch frameless arched mirrors equipped with rear-mounted 2700K high-CRI (95+) LED ribbon diffusers.

• Wire mirror backlighting to a dedicated digital touch-dimmer for transition between morning grooming and evening mood lighting.

• Enclose the adjacent private water closet and steam shower with black aluminum-framed reeded (fluted) tempered glass doors.

• Suspend delicate brass cylinder pinspot pendants directly over the vanity basins for targeted task illumination.

Pro Design Tip

Ensure mirror backlighting diffuses outward against the wall surface rather than forward to eliminate harsh facial shadows during morning routines.

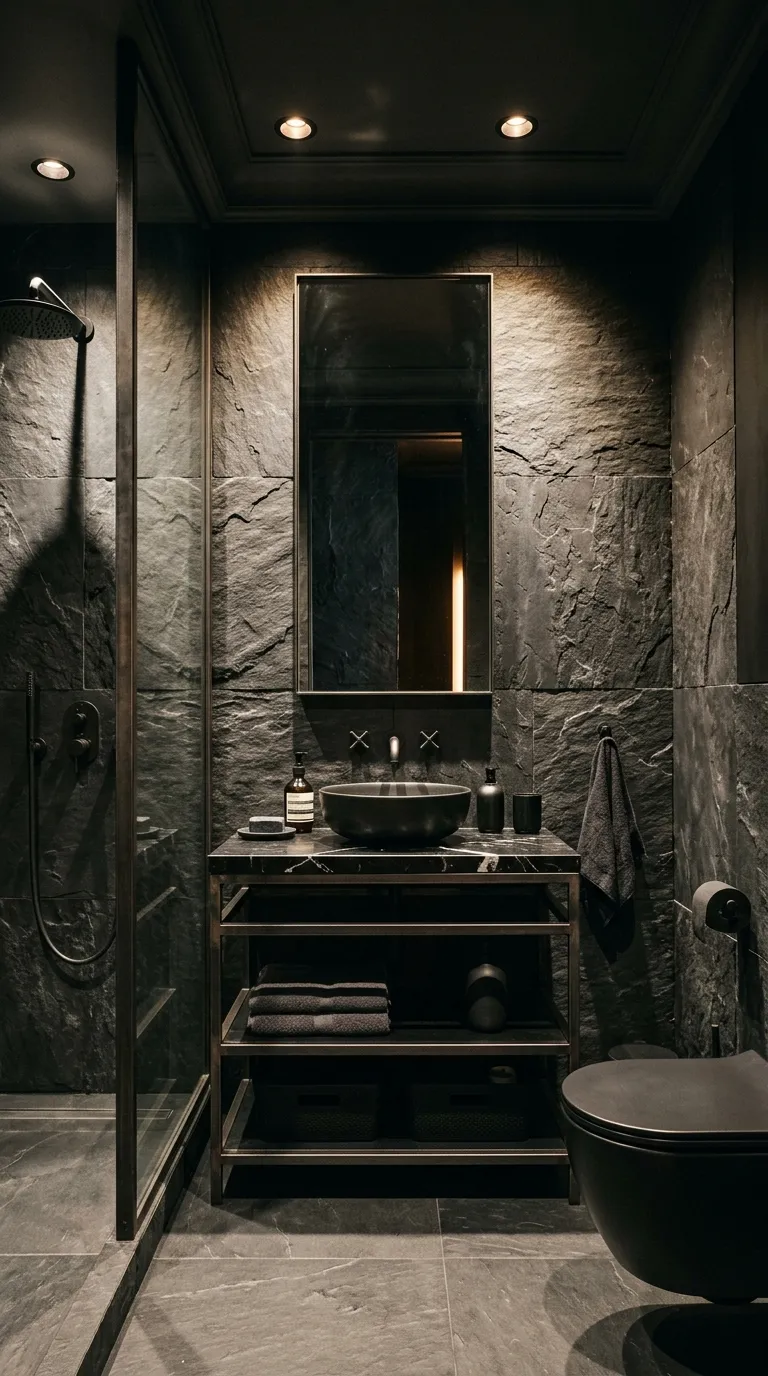

5. Moody Charcoal Cleft Slate & Blackened Steel Industrial Suite

Architectural Concept & Structural Design

A dramatic, dark-mode luxury bathroom pairing split-face cleft charcoal slate walls, a blackened steel open-frame vanity, Nero Marquina marble, and precision architectural downlighting.

Architectural Execution Guide

• Clad the main shower accent wall in split-face charcoal slate tiles for rich tactile relief.

• Fabricate an open vanity base using 1.5-inch square blackened steel tubing, holding an exposed lower slatted shelf for rolled linen storage.

• Top the vanity with a honed Nero Marquina black marble counter featuring sharp white lightning veining and undermount black composite sinks.

• Install matte-black thermostatic shower controls with textured knurled dial handles.

• Illuminate the room using narrow 15-degree architectural ceiling spotlights focused on stone textures and basins, leaving corners softly shadowed.

Pro Design Tip

Use charcoal epoxy grout that matches the slate tone; standard Portland cement grout can effloresce and leave white haze marks on dark natural stone.

6. Japandi Hinoki Wood Soaking Tub & River Pebble Sanctuary

Architectural Concept & Structural Design

A calming blend of Japanese minimalism and Scandinavian warmth centered around an authentic aromatic Hinoki wood or red-cedar soaking tub set within an interior stone pebble bed.

Architectural Execution Guide

• Construct a low-profile raised platform deck clad in water-sealed vertical natural cedar or thermo-ash slats.

• Set an oval, freestanding Japanese soaking tub (Ofuro) on the platform.

• Recess a 12-inch wide border around the platform base filled with polished black Mexican river pebbles over a waterproof drainage sub-pan.

• Install floor-to-ceiling vertical timber slat screens to filter natural window daylight softly across the room.

• Place a minimalist bonsai or sculptural branch in a raw concrete urn on a low stone plinth beside the tub.

Pro Design Tip

Hinoki and cedar woods naturally release therapeutic aromatic phytoncides when exposed to hot bath steam, enhancing the calming spa experience.

7. Bookmatched Calacatta Viola Marble Feature Wall & Block Sink

Architectural Concept & Structural Design

A striking powder room or master vanity wall featuring mirrored bookmatched Calacatta Viola marble slabs with dramatic cabernet veining, paired with a carved monolithic stone block sink.

Architectural Execution Guide

• Mount two consecutive, mirrored Calacatta Viola marble slabs across the primary wall so the burgundy veining creates a symmetrical butterfly pattern.

• Fabricate a custom monolithic block sink from the same stone slab, securing it to wall framing with concealed structural steel brackets.

• Install a wall-mounted unlacquered raw brass spout and cross-handle valve directly through the marble center.

• Drench non-stone walls and the ceiling in deep charcoal or aubergine matte paint for an intimate, jewel-box feel.

• Hang a single off-center Spanish alabaster disc pendant light beside the vanity mirror.

Pro Design Tip

In compact powder rooms, dark wall colors on adjacent drywall surfaces make the vibrant bookmatched marble wall stand out with higher architectural contrast.

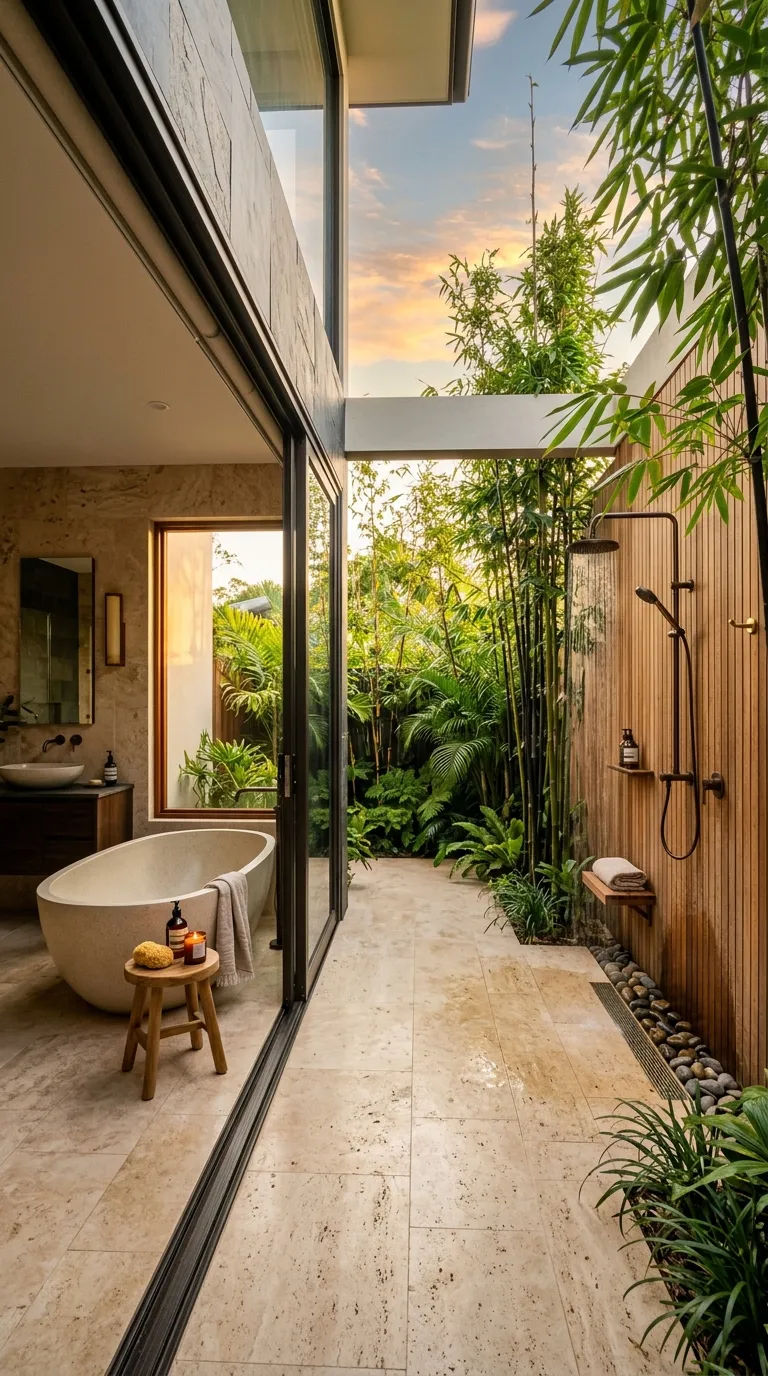

8. Indoor-Outdoor Ensuite with Private Bamboo Garden Atrium

Architectural Concept & Structural Design

A resort-grade master bathroom opening to a private walled garden atrium through motorized, floor-to-ceiling sliding glass pocket doors.

Architectural Execution Guide

• Install a multi-slide structural glass door system that retracts fully into exterior wall cavity pockets.

• Extend honed Roman travertine flooring from the interior vanity space straight out onto the exterior terrace without a raised step.

• Enclose the outdoor atrium with an 8-foot high horizontal cedar slat privacy fence, planted with dense black bamboo and broadleaf hostas.

• Mount an outdoor rain shower fixture on the exterior cedar wall, plumbed in tandem with interior shower valves.

• Fit ceiling-recessed motorized blackout and sheer screens above the glass door track.

Pro Design Tip

Use marine-grade 316 stainless steel for all exterior shower components to prevent corrosion from outdoor weather exposure.

9. Vertical Sage Zellige Tile & Custom Terrazzo Ensuite

Architectural Concept & Structural Design

A texture-rich modern bathroom combining hand-glazed vertical Moroccan sage-green zellige tiles with custom large-aggregate terrazzo floor slabs.

Architectural Execution Guide

• Tile wet walls from floor to ceiling with $2times6$-inch glossy seafoam or sage-green zellige tiles in a clean, vertical stack bond pattern.

• Pour or lay $32times32$-inch custom terrazzo floor tiles embedded with white, sage, and pale amber marble aggregate chips.

• Complement the tilework with a floating vanity in natural bleached ash wood with brushed satin nickel edge-pull hardware.

• Mount a frameless circular mirror over the vanity flanked by dual mouth-blown opal glass globe sconces.

• Add an undermount rectangular white porcelain basin with a flat, eased stone edge.

Pro Design Tip

The organic surface variations and irregular edges of handmade zellige tiles catch overhead light at different angles, breaking up rigid modern geometric grids.

10. Smart High-Tech Wellness Suite with Digital Steam Shower

Architectural Concept & Structural Design

A high-tech wellness bathroom featuring a fully sealed digital steam shower cabin, integrated chromotherapy lighting, and an automated smart bidet toilet.

Architectural Execution Guide

• Build a vapor-sealed shower enclosure with an insulated ceiling pitched at 2 inches per foot to prevent condensed water droplets from dripping onto users.

• Install a concealed commercial-grade steam generator with an in-shower waterproof digital touchscreen interface.

• Embed ceiling-flush RGBW LED light modules programmed for automated chromotherapy cycles (energizing amber in the morning, calming deep blue at night).

• Mount an in-wall carrier smart bidet toilet featuring automatic lid opening, heated seating, UV bowl sanitization, and warm-air drying.

• Install invisible, behind-drywall acoustic transducer speakers for ambient soundscapes during steam cycles.

Pro Design Tip

Pitch the steam shower ceiling toward the back wall away from the shower bench so condensation drains smoothly down the wall surface.

Luxury Bathroom Concept Comparison

Bathroom Concept	Primary Materiality	Key Architectural Feature	Floor Space Needed	Mechanical Complexity
Curbless Wet Room	Honed Limestone / Low-Iron Glass	Continuous floor plane + Soaking tub	$10times12text{ ft}$	Advanced (Dual linear drains)
Fluted Oak Vanity	Rift White Oak / Calacatta Gold	Integrated marble ramp sinks	$8times10text{ ft}$	Intermediate
Microcement Ensuite	Waterproof Plaster / Basalt Tile	Grout-free seamless surfaces	$7times9text{ ft}$	Intermediate
Backlit Mirror Wall	Venetian Plaster / Fluted Glass	Halo mirrors + Reeded glass doors	All Room Sizes	Simple to Intermediate
Moody Slate Industrial	Split Charcoal Slate / Steel	High-texture cleft stone wall	$8times10text{ ft}$	Intermediate
Japandi Hinoki Sanctuary	Hinoki Cedar / River Pebbles	Wood soaking tub + Pebble border	$9times11text{ ft}$	Advanced (Tub drainage)
Bookmatched Viola	Calacatta Viola / Raw Brass	Mirrored butterfly marble slab	$5times8text{ ft}$ (Powder)	Intermediate (Heavy stone)
Indoor-Outdoor Atrium	Honed Travertine / Cedar / Glass	Zero-threshold sliding pocket wall	Master Suite	Advanced (Exterior tie-in)
Vertical Sage Zellige	Glazed Zellige / Terrazzo Slabs	Glossy vertical stack tile	$8times10text{ ft}$	Intermediate
Smart Steam Suite	Vapor Glass / Digital Controls	Sloped-ceiling steam cabin	$9times12text{ ft}$	Advanced (Steam/Electrical)

Common Architectural Mistakes & How to Avoid Them

• Inadequate Wet Room Floor Slope: Insufficient floor pitch in curbless showers causes water to escape into the dry vanity zone. Solution: Maintain a strict 1/4-inch per foot slope toward the linear drain and place a secondary emergency drain near the glass threshold.

• Specifying Polished Stone on Wet Floors: Polished marble or porcelain becomes slippery and dangerous when wet. Solution: Use honed, textured, or flamed stone with a Dynamic Coefficient of Friction (DCOF) rating of 0.42 or higher on all wet-area floors.

• Under-Sizing Shower Niches: Building shampoo niches too short or completely flat causes standing water and prevents tall pump bottles from fitting. Solution: Build niches at least 12 to 14 inches tall and pitch the bottom stone sill 1/8-inch forward so water drains back into the shower.

• Undersized Bathroom Ventilation: Low-CFM exhaust fans allow steam to linger, damaging paint and causing moisture buildup behind mirrors. Solution: Install an ultra-quiet inline remote exhaust fan rated for at least 1 CFM per square foot of bathroom area, controlled by an automated digital humidity sensor.
